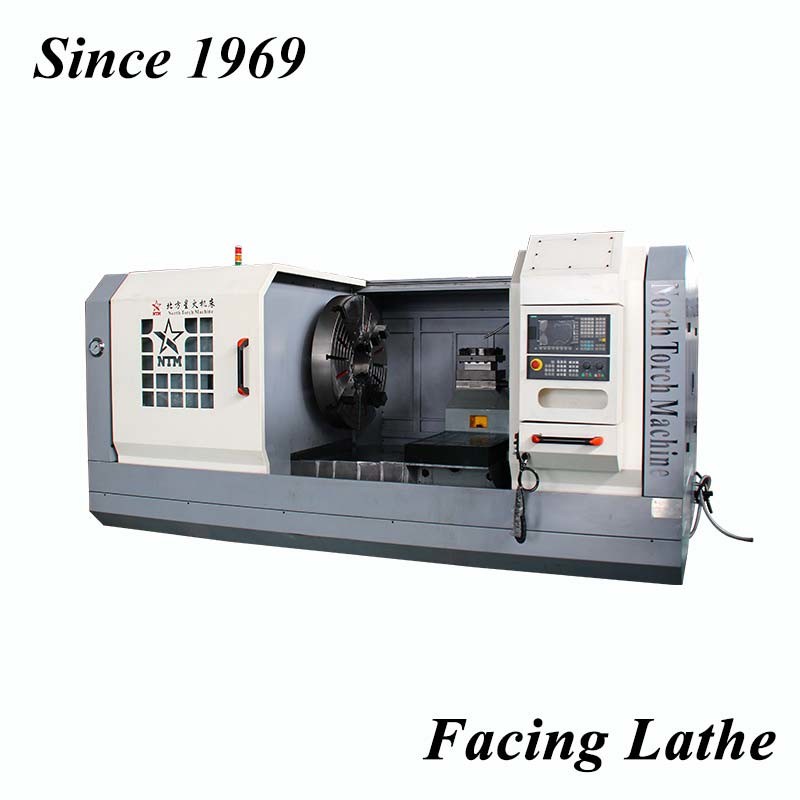

China Professional High Quality Facing CNC Lathe, Horizontal Lathe, Lathe Machine

For turning facing HDPE falnge, Steel Flange, Tyre Mold, Aluminum Mold, Shipyard Propeller, Impeller, Automotive Wheel, Turbine, Pipe Fittings

We are China First Horizontal Facing CNC Lathe, Lathe Machine, Flange turning lathe Manufacturer with more than 50 years experience, We specially designed a kind of CNC drilling milling lathe machine with national certificate. It is professionally used for turning, drilling holes on the flange. It helps customer to save invest cost and highly improve the machining and clamping efficiency. One lathe machine can finish both turning and drilling processes.

Our company advantages in making flange turning lathe, cnc lathe, facing lathe, lathe machine. cnc machine tool

1. More than 50 years experience in designing and manufacturing standard and customized lathe machines.

2. We have our foundry which can control the casting parts quality very well. We have professional hardening/quenching furnace used for castings surface treatment to ensure high stability, rigidity and accuracy of horizontal lathe machine.

3. Professional machining equipment such as 12 meters long gantry CNC Grinding Machine, gantry milling machine, CNC Boring Machine, Drilling Machine, Horizontal CNC Lathe Machine for machine main parts like headstock , tailstock, guide rail ,cutting tool carriage, chuck turning

4. Professional technical team to provide both 3D & 2D drawings of horizontal Lathe Machines, roll turning lathe, Facing Lathe Machine, etc to customers after order confirmation and before production. In this designing method, we can make a perfect customized lathe machine for customers.

5. Immediate reply and actions for after-sale service , even after 15 years, we can also provide the easy damaged lathe machine parts and accessories immediately, becaue for each horizontal lathe machine and vertical lathe machines, we have one complete drawings. and we have enough spare parts for each lathe machine in stock.

A.Main Components

Internationally forerunner computation technologies and optimized finite element analysis methods are adopted and the selected materials are suitable for the design so that the machine can carry loads as heavy as possible.

All castings are made of high-strength meehanite HT250. Therefore, the lathe has proved high rigidity, stability and precision maintenance, which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found.

The lathe is in one-piece structure and made of meehanite, greatly enhancing its abrasion resistance, and the internal force elimination process produces high vibration resistance and considerably enhances stability. The cross-shaped base and rectangular bearing structure ensure high structural stability and permanently stable quality.

with high geometric accuracy.

Technical Parameters of cnc lathe, facing lathe, lathe machine, horizontal lathe.

2D drawings of cnc lathe, facing lathe, horizontal lathe, lathe machine

Geometric Accuracy of cnc lathe, lathe machine. horizontal lathe, flange turning lathe

Radial Run-out of Spindle (Bottom) +/-0.025mm

Axial Run-out of Spindle +/-0.025mm

Radial Run-out of Top　 +/-0.025mm

Others please refer to JB/T8325.1-96.

Operation Accuracy

Roundness +/-0.025mm

Cylindricity +/-0.025/300mm

Platness +/- 0.025/300mm

Re-positioning errors +/-0.025/300mm

Positioning Accuracy +/- 0.025/300mm

Roughness of Turning <Ra3.2um

• Standard Accessories of CNC Lathe Machine, Horizontal Lathe

1.SIEMENS 808D Control System

2.800 mm Chuck with 4 jaws

3. Main Motor Power: Variable Frequency Motor

4. Automatic Circular Cooling System

5. Protective Shield/cover for X,Z axis Guide rails

6. 4 positions cutting tool carriage--Electrical Control with automatic rotation

7. X & Z axis are controlled by servo motor.

8. Manual Pulse Generator installed on the operation control panel side.

9. Automatic Lubrication system

10. Automatic power intercept unit for safety.

11. Hand-wheel with separate line type

12. Electrical control box

13. Operation / maintenance manual

14. Indicating light

15.Full Metal Cover for Lathe Machine and Automatic Chip Conveyor for lathe

• After-sale Service of cnc lathe, lathe machine, facing cnc lathe, horizontal lathe

• Machine tool equipment factory warranty 12 months from the date of acceptance.
• The warranty period the seller is responsible for free repair and free of wearing parts.
• The subordinate is within the warranty period, but not used, users have to pay all the repair cost.

• In machine tools such as earthquake, typhoon, flood, fire or human can't resist of disaster damage.
• The buyer's improper operation (such as collision) and improper maintenance (such as add the wrong oil) and failure, rust or damage.

• The warranty period, the seller is responsible for ensuring the parts paid supply and repair technology consulting and paid for repair.
• The warranty period, the seller is responsible for ensuring the parts paid supply repair technology consulting and paid for repair.

• Repair reaction time, given in reply received repair telephone within 24 hours, implement all-weather service.

Remarks:

• We are specialized in re-designing and manufacturing customized lathe machines per work-piece’s features to maximum customer’s profitability under the minimum cost. Double win is our business principle.

Thanks for your attention!

Look forward your cooperation

Qingdao North Torch Machine Tool Co.,Ltd was established in the 1969. It originally belonged to Liuting Airport Military Enterprise of North China Sea Fleet Aviation (Aviation Machinery Plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc. In accordance with the document issued in 1999 by central military commission and the state council, the company was changed from military enterprise into a private company, and developed continuously.

Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.

We provide the perfect CAD/CAM information processing and 3D design software, combined with domestic higher-educational institutions to form a science and technology association. We averagely launch more than 5 high technical patent products annually.

The company has passed ISO9001 international quality management system certification, CE Certificate, EAC Certificate, BV Certificate ,etc and become one of the 100 progressive growth enterprise supported by the Qingdao Government. It is also an enterprise supported by the national innovation funds. As a key enterprise in Shandong province, we are the first enterprise that researched and manufactured the large floor-type lathe series.

Our products have been exported to Georgia, Russia, India, Iran, Panama,Colombia,Brazil, Indonesia, Australia, Mexico, America, France, Iran, Chile, Norway, Thailand, Pakistan, Argentina and etc. Due to the excellent and stable quality with bottom price and professional after-sale service make us separate from other competitors and win a good reputation from domestic and abroad customers.

With the concept of “diversity and pursuit of excellence”, we aim to offer superior products and service to our customers.
