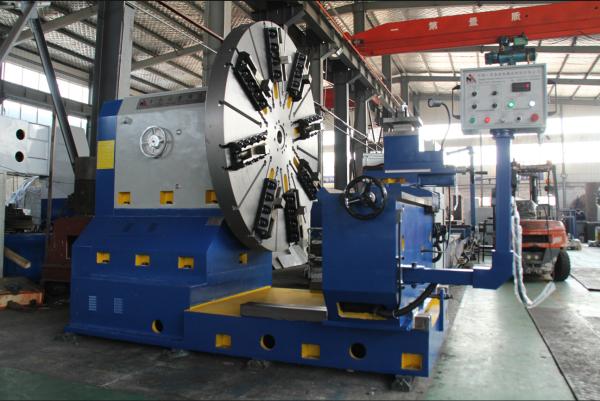

The maximum workpiece diameter of the turning flange is 2500 mm
facing the lathe
Face to face lathe description
The facing lathe is a kind of lathe that can process both ends of a
bar at the same time. Although it may be called a trimming and
centering machine, it can also be used for chamfering, drilling,
countersinking and turning. In most cases, end faces and centering
machines are used to prepare the bar stock for further processing
on the main operating lathe.
Usually, the operator needs to machine one end of the part, remove
the part, and then machine the other end. By processing both ends
of the bar at the same time, the turning time can be cut in half.
However, in addition, by correctly preparing the end face of the
workpiece before turning, the faceting and centering machine can
often completely eliminate subsequent finishing operations. The
centering operation of the machine (creating a precisely positioned
hole during drilling or machining) can also eliminate the need to
machine certain parts of the outer diameter of the workpiece later.
Any operation of manufacturing shafts, splines, pinions and similar
parts can be used for end-to-end machines. The automotive and
driveshaft industries are perhaps the most prominent industries.
Technical Parameters of Facing cnc lathe, horizontal lathe
| Specifications of Facing in Lathe |
| Name | Unit | CK64125 | CK64160 | CK61200 | CK64250 | CK64300 |
| Swing Diameter over Machine Bed | mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm | φ3000 |
| Chuck Diameter | mm | φ1000mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
| Chuck-jaw seat length | mm | Embedded | Embedded | 500mm | 500mm | 500mm |
| Work-piece Length | mm | 500mm | 750mm | 750mm | 1000mm | 1000mm |
| Work-piece Weight | T | 2T | 2T | 3T | 3T | 5T |
| Spindle Diameter | mm | φ190mm | φ200mm | φ220mm | φ220mm | φ260mm |
| Spindle Speed | r/min | 10-200 r/min | 4-160 r/min | 4-160 r/min | 3-106 r/min | 3-106 r/min |
| X Axis Stroke | mm | 625mm | 800mm` | 1000mm | 1250mm | 1500mm |
| Z Axis Stroke | mm | 500mm | 750mm | 1000mm | 1000mm | 1000mm |
| X Axis Rapid Feed Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min |
| Z Axis Rapid Feed Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
| Cutting Tool Carriage Size | | 240*240 | 280*280 | 300*300 | 300*300 | 300*300 |
| Cutting Tool Shank Size | mm | 32*32mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
| Feed Control | | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor |
| Motor Parameters |
| Main Motor Power | KW | 15KW | 18.5KW | 18.5KW | 22KW | 37KW |
| Feed Motor of Z Axis | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
| Feed Motor of X Axis | KW | 2.3KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
| Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
| Machine Accuracy |
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Flatness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
| Machine Dimensions | mm | 3180*1910*1870 | 3940*1980*1900 | 4190*2670*2450 | 4250*2770*2800 | 4400*3300*3300 |
| Machine Weight | T | 6T | 9.5T | 11T | 12.5T | 15T |
Notes: The above models of facing flange turning cnc lathe machine
is the standard configuration and sizes, if you have special
request, please let us know, because we are also specialized in
making customized lathe also, which can help customer save input
cost and obtain a perfect lathe machine.
Delivery Time : 2 months. Some times we have machine parts in
stock, we can shorten the production time from 2 months to 1 month
or 2 weeks
Certificate of horizontal facing cnc lathe : CE, EAC, SGS, BV,
ISO9001.
Machine Quality Warranty : 1 year after machine installation and
commissioning at customer's factory. Within 2 years, we can provide
smaller electrical parts like relay, cutting tool signal transfer
disc, etc freely.
After-sale Service and Maitenance Of Facing cnc lathe, horizontal
flange turning lathe
1. We provide professional technical training for users' operators
and maintenance staff to enable them to properly use and operate
the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the
factory will dispatch personnel to the user's location within 48
hours (domestic users) & within 3 days (Foreign Customer) and the
technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and
mechanical parts for the purchased lathe timely within warranty
period.
5. The company will provide lifetime guarantee for the consulting
services in terms of application, maintenance, repair, renovation,
etc of equipments.
For other more details, please feel free to contact me. Thank you
Tag: Facing cnc lathe, horizontal facing lathe, heavy duty
horizontal lathe, flange turning lathe, rubber part turning lathe,
impeller lathe,
