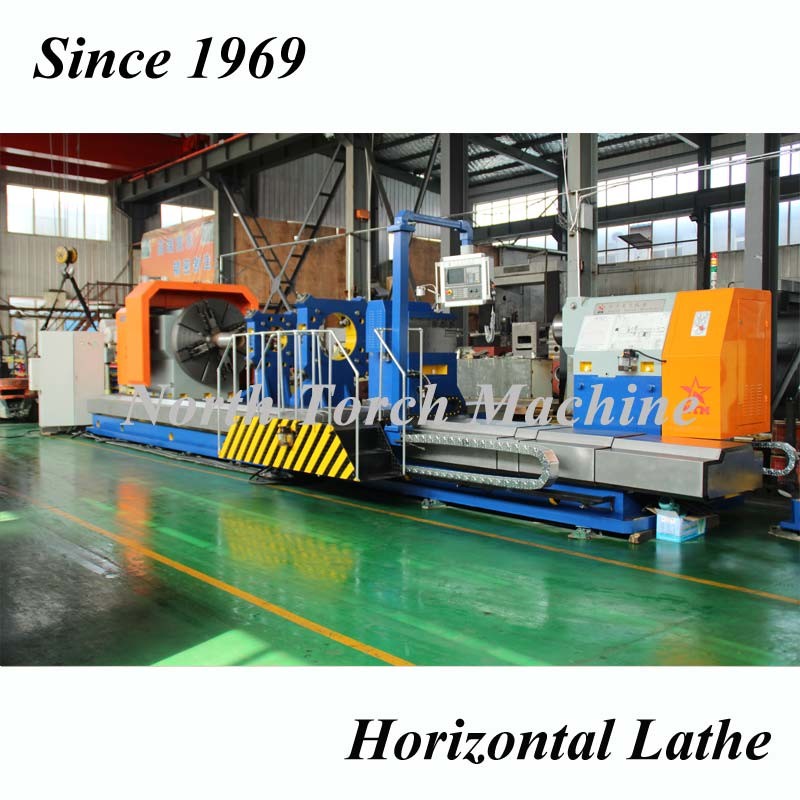

High Precision Horizontal Heavy Duty Lathe Machine for turning milling shaft

1. Application of Heavy Duty Lathe : This is a kind of heavy duty horizontal lathe machine, which can be also designed into steel roll turning lathe, lathe machine, CNC Milling lathe machine, CNC Drilling Lathe Machine, it is Professionally utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.

Curently the Maximum Diameter over Machine Bed can be 6000 mm. Max.Length between centers can be 120000 mm. Max.Weight of steel roll, cylinder, sahft can be 60T.

Qingdao North Torch Machine Tool Co.,Ltd was established in the 1969. It originally belonged to Liuting Airport Military Enterprise of North China Sea Fleet Aviation (Aviation Machinery Plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc. In accordance with the document issued in 1999 by central military commission and the state council, the company was changed from military enterprise into a private company, and developed continuously.

Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.

2. OUR ADVANTAGES & FEATURES about Horizontal LATHE Machine:

More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.

We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.

High torque capacity of headstock of lathe machine

Zero backlash with ball screw.

Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system

Tailstock is electrical control with pressure display, which obtained our national patent.

The operation panel is PLC Control with our special design which obtained national patent, the operation is easy, like CNC but cheaper and easier than CNC Control.

Exported Countries :

Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc

3. Technical Parameters of Horizontal lathe Machine

Remarks: The above technical parameters of roll turning lathe is the standard specifications, we are also specialized in manufacutring customized lathe.

4. After-sale Service

1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.

2. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.

3. Machine Accessories: Roll Rest, Center Support, Heavy Chuck, Chuck jaws, Follow Cutting tool, etc.

For more details, please feel free to contact us.

Thank you for attention.
