China Professional Cathode Roller Turning Heay Duty Horizontal CNC Lathe Machine With 2 Years Quality Warranty

Conventional Lathe, Heavy Duty horizontal lathe, lathe machine, cnc lathe, roll grinding machine, CNC Milling Lathe

We are China professional heavy horizontal lathe manufacturer with more than 50 years experience. We are specialized in making customized lathe machines also that specially designed and made cnc lathe, lathe machine, heavy horizontal lathe, cnc machine tool according to customer's special request and work-piece features. Such as cnc lathe with 2 cutting tool carriages, CNC Lathe with milling function, cnc grinding lathe, etc

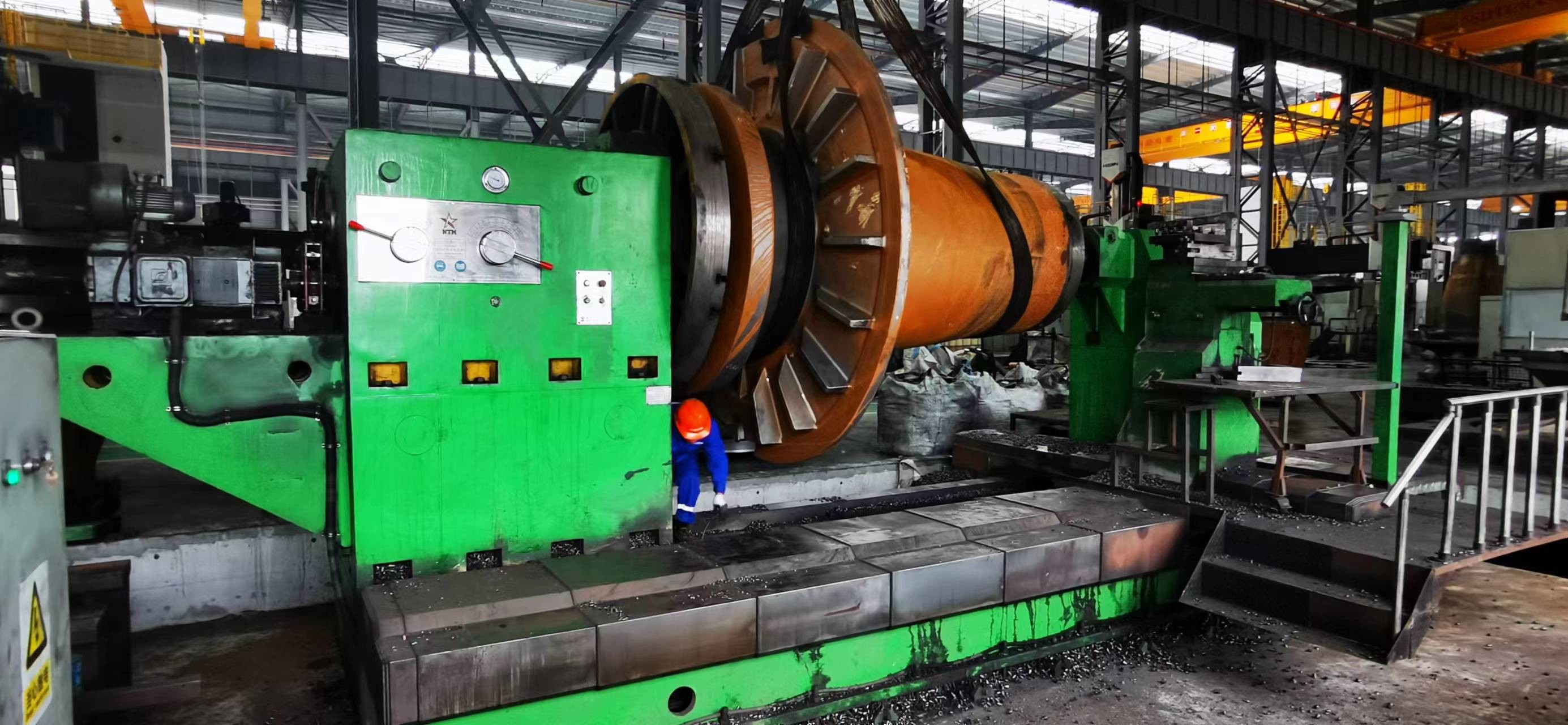

1. This kind of heavy duty horizontal lathe machine can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces of non-metal materials and all kinds of the surface of curve rotary body. What’s more, it can also realize the constant speed cutting line. It is a professional lathe machine for turning heavy cylinder/rollers. That is an ideal option for roller /cylinder machining and very popular in the market.

2. This machine adopts rectangular 4 guide rails with high rigidity and stability. We adopts pasting plastic structure between sliding plate and machine bed guide. Besides, this guide rail is equipped with elescopic steel metal cover to prevent machining chips into the guide rail.

3. The Main Transmission is driven by the DC variable frequency motor with mechanical 3 speeds to realize stepless speed range of spindle.

4. The spindle adopts high precision double rows cylindrical roller bearings with adjustable radial clearance. Through optimized design, the larger spindle diameter and the best support span improve the rotation accuracy of spinlde and dynamtic and static strength.

5. The horizontal structure of cutting tool carriage adopts ball screw, and the longitudinal adopts double teeth rod clearance structure to improve the transmission accuracy.

6. The tailstock is a kind of overall box structure. The core shaft of sleeve adopts high precision double rows cylindrical roller bearings with adjustable radial clearance, so that the tailstock has high stiffness. The movement of tailstock and sleeve are electrical control with automatic clamping and release.

7. According to customer’s special request, this kind of lathe can be installed double cutting tool carriages, milling and boring devices. Grinding wheel device,spindle indexing and tool setting device

8. The main drive and feed transmission of this series heavy duty horizontal lathe adopts separate structures. This is a kind of heavy duty horizontal lathe with PLC system.

CE, EAC, SGS, BV National patent Certificate like CNC Milling Drilling Lathe Machine , CNC Grinding Lathe

Technical Parameters of Heavy Duty Horizontal Lathe, CNC Lathe, Lathe Machine, CNC Machine Tool

REMARKS: The above models of heavy duty horizontal cnc lathe , lathe machine, conventional lathe are the standard configurations. We can redesign and make the special horizontal lathe machine, cnc lathe, roll lathe according to work-piece size and customer's special request.

Package and Shipment of heavy duty horizontal lathe machine, cnc lathe, cnc machine tool

Vaccum Bag--2 layers + Wooden box pacakage for horizontal lathe machine, cnc lathe, cnc machine tool

After sale service and machine maintenance

1. Machine Quality Guarantee : 1 year quality warranty after acceptance of horizontal lathe machine, cnc lathe, cnc machine tool

2. Heavy Duty Horizontal Lathe Installation and Commissioning: Engineers are available for oversea market service like cnc lathe, lathe machine , horizontal lathe installation and commissioning. Training the customer's operator is also available.

For other more details, please feel free to contact me.

Thank you.

Qingdao North Torch Machine Tool Co.,Ltd was established in the 1969. It originally belonged to Liuting Airport Military Enterprise of North China Sea Fleet Aviation (Aviation Machinery Plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc. In accordance with the document issued in 1999 by central military commission and the state council, the company was changed from military enterprise into a private company, and developed continuously.

Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.

We provide the perfect CAD/CAM information processing and 3D design software, combined with domestic higher-educational institutions to form a science and technology association. We averagely launch more than 5 high technical patent products annually.

The company has passed ISO9001 international quality management system certification, CE Certificate, EAC Certificate, BV Certificate ,etc and become one of the 100 progressive growth enterprise supported by the Qingdao Government. It is also an enterprise supported by the national innovation funds. As a key enterprise in Shandong province, we are the first enterprise that researched and manufactured the large floor-type lathe series.

Our products have been exported to Georgia, Russia, India, Iran, Panama,Colombia,Brazil, Indonesia, Australia, Mexico, America, France, Iran, Chile, Norway, Thailand, Pakistan, Argentina and etc. Due to the excellent and stable quality with bottom price and professional after-sale service make us separate from other competitors and win a good reputation from domestic and abroad customers.

With the concept of “diversity and pursuit of excellence”, we aim to offer superior products and service to our customers.
